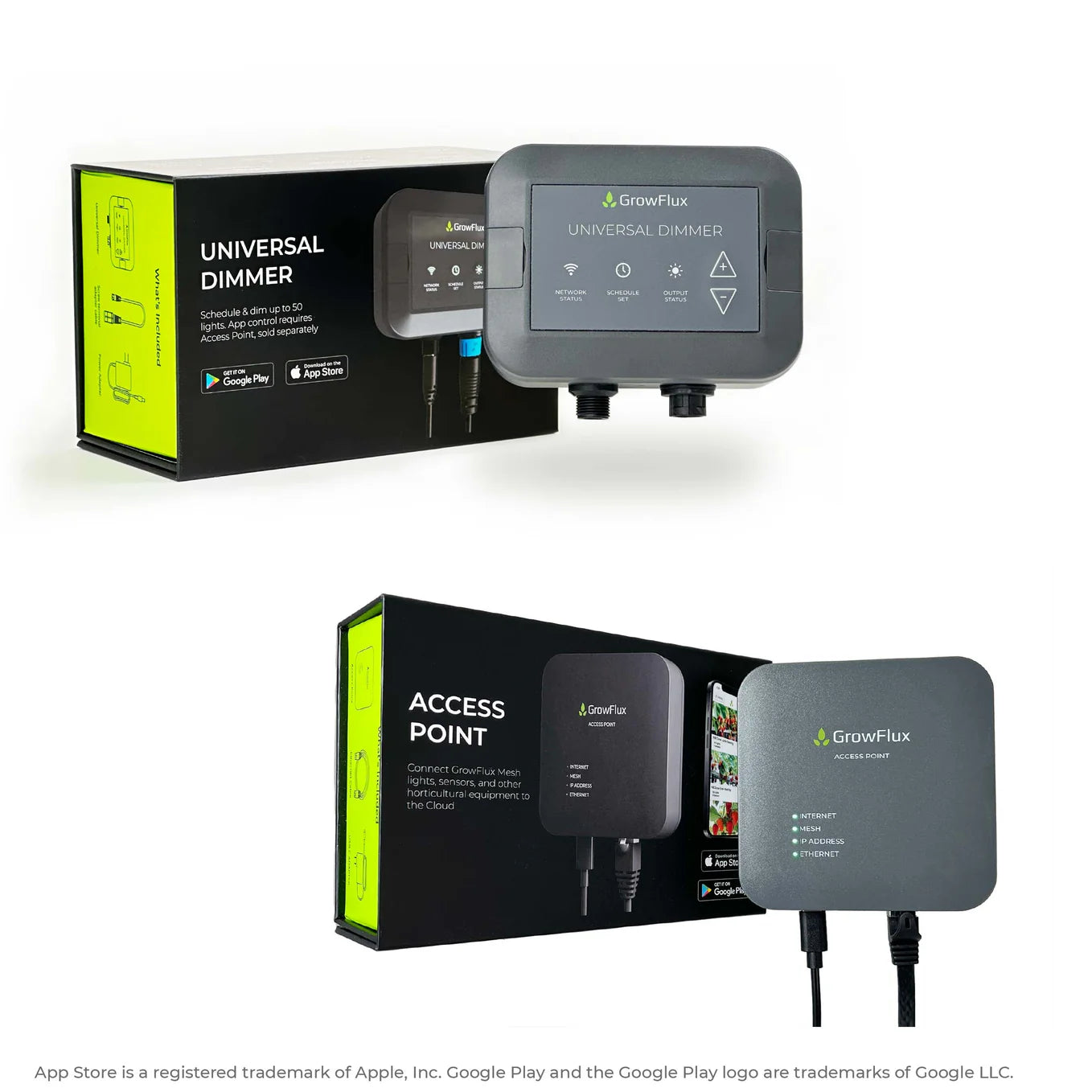

GrowFlux Universal Dimmer and Access Point
**Note: Access Point is required for connected control. The Universal Dimmer can be used with pushbutton dimming without the Access Point.**
Controls up to 100 Faven units.
Schedule and dim up to 50 lights with the Universal Dimmer. Connects to the 0-10V dimming interface on your grow light for precision scheduling and dimming. Use the GrowFlux App to select standard light schedules, build custom schedules, and remotely control and monitor your lighting system. The Universal Dimmer wirelessly connects to the Access Point with GrowFlux Mesh to scale to farms of any size.
Features
- Schedule and dim any 0-10V dimmable LED light or 0-11.5V dimmable HPS light
- Connect up to 50 lights to each Universal Dimmer
- Compatible with wide range of lighting manufacturers including Faven Under Canopy Lights
- Remote control and scheduling on any device through GrowFlux App
- GrowFlux Mesh wirelessly networks many Universal Dimmers for farms of any size
- Long range, reliable wireless communications - all layers are securely encrypted
- IP66 waterproof

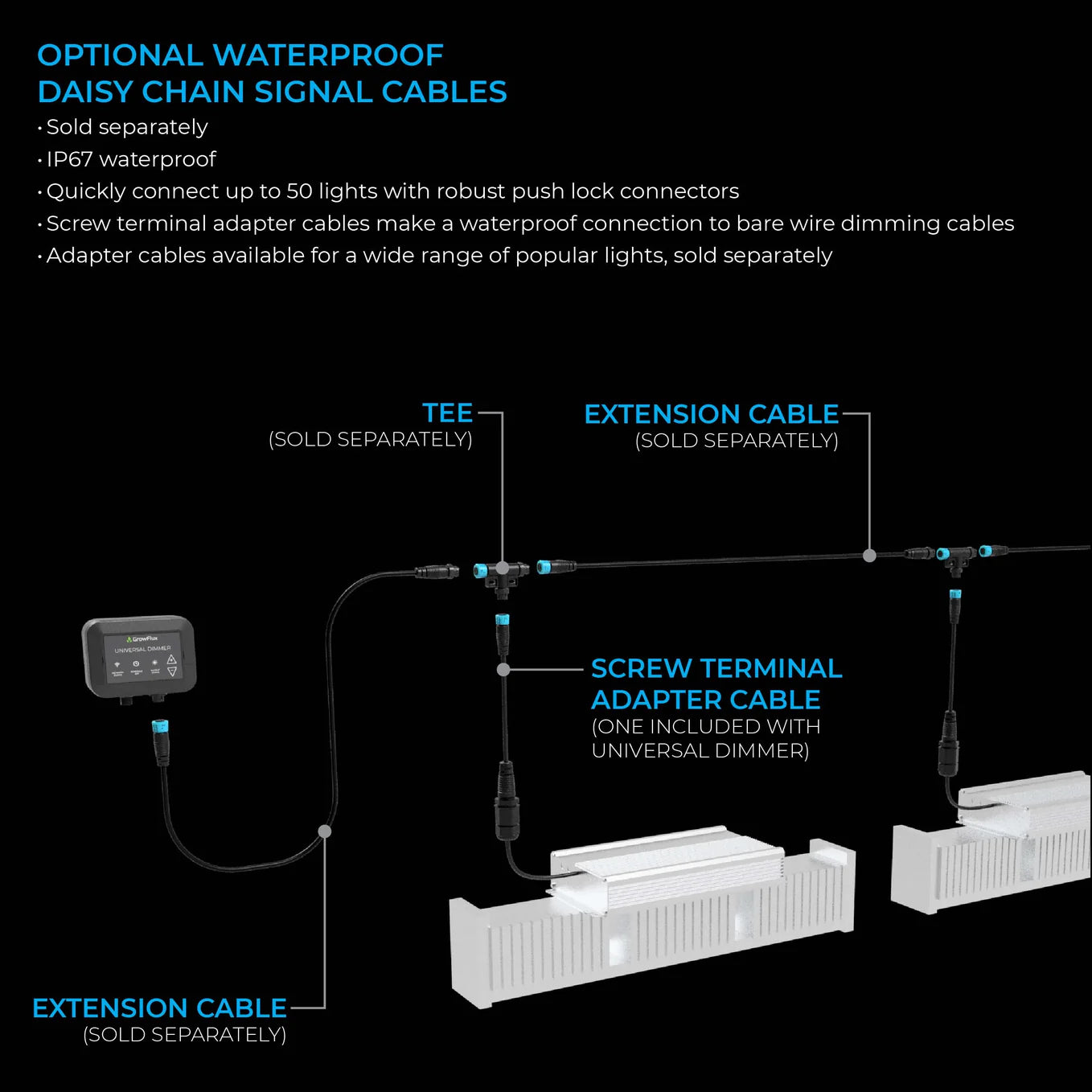

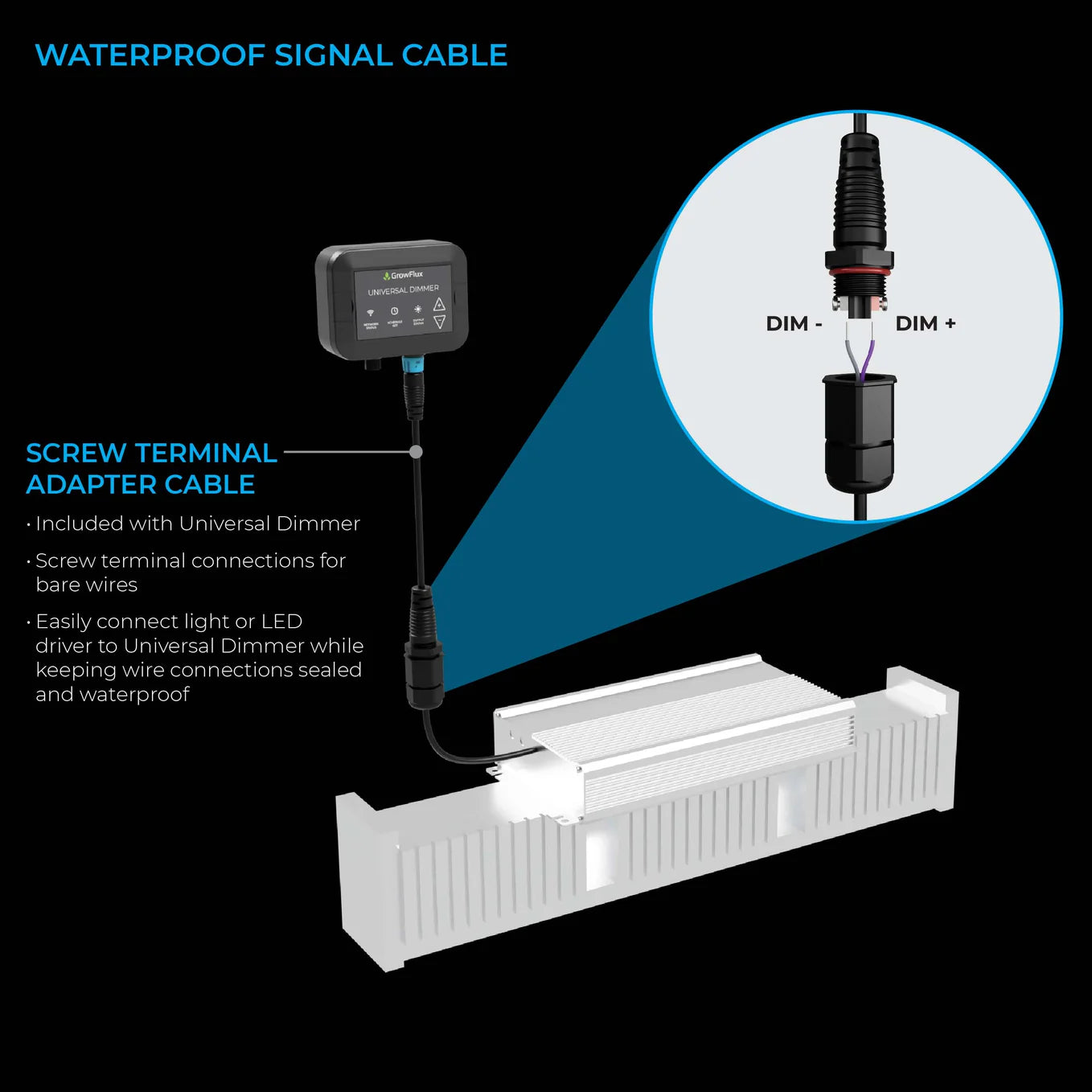

- Sealed cable system available to diasy chain dimming signal to up to 50 lights, sold separately
- Easy installation and setup, suitable for retrofit & new installations

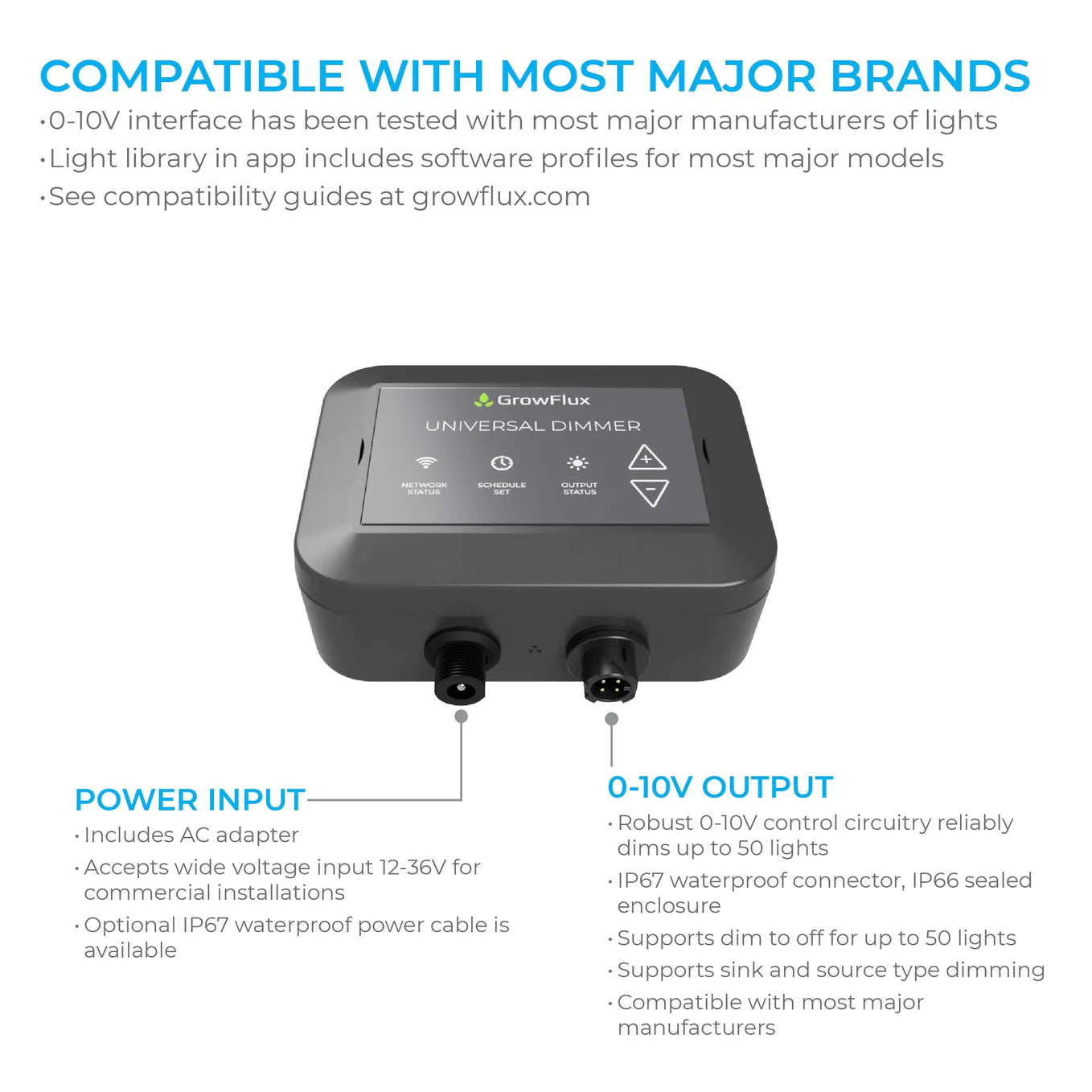

COMPATIBLE WITH MOST HORTICULTURAL LIGHTS
The Universal Dimmer singal interface has been developed and tested to be compatible with a wide range of horticultural lights, including LED and dimmable HPS lights from the industry’s top manufacturers. Tested with major manufacturers of LED drivers, including Inventronics, Meanwell, Artesyn, Powerland, and others. Includes specialized support for signaling to large groups of dimto-off drivers, ensuring lights turn off reliably in critical production environments

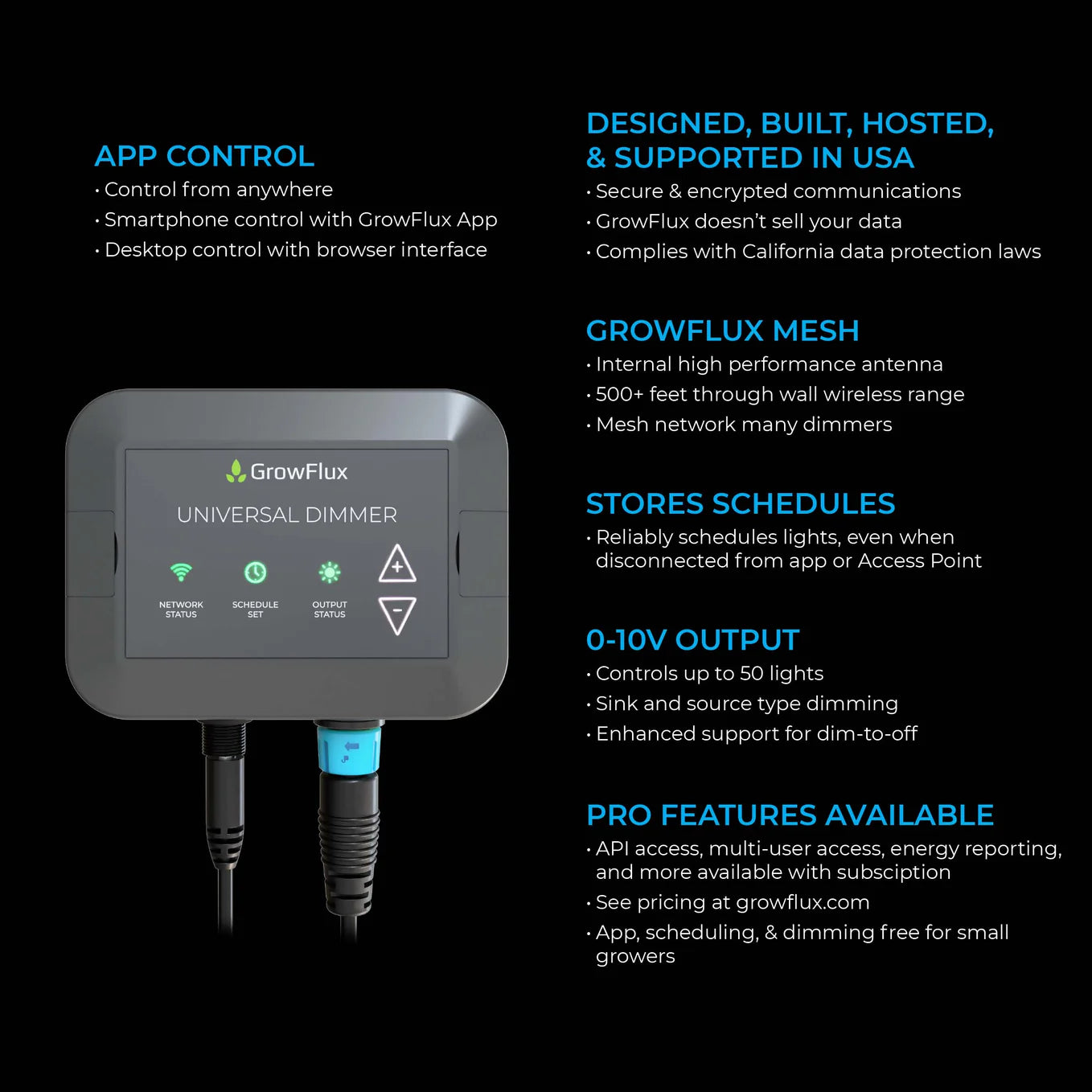

GROWFLUX MESH
Works together with the GrowFlux Access Point and other GrowFlux Mesh enabled products to propagate a high reliability wireless network locally within your farm. Utilizing 900MHz frequencies for ultimate range and reliability, GrowFlux Mesh is built for critical production environments and is hardened against security threats with AES128 and TLS encryption.
SOFTWARE DEFINED ZONING
Never manually program a lighting controller again with Software Defined Zoning. Zones can contain any number of Dimmers and can be reconfigured in minutes within the GrowFlux App.
UNLOCK ENERGY SAVINGS
Meet regulatory requirements with both LED and HPS lights with precision scheduling and dimming. The GrowFlux App gives total control over PPFD light density and energy loads.

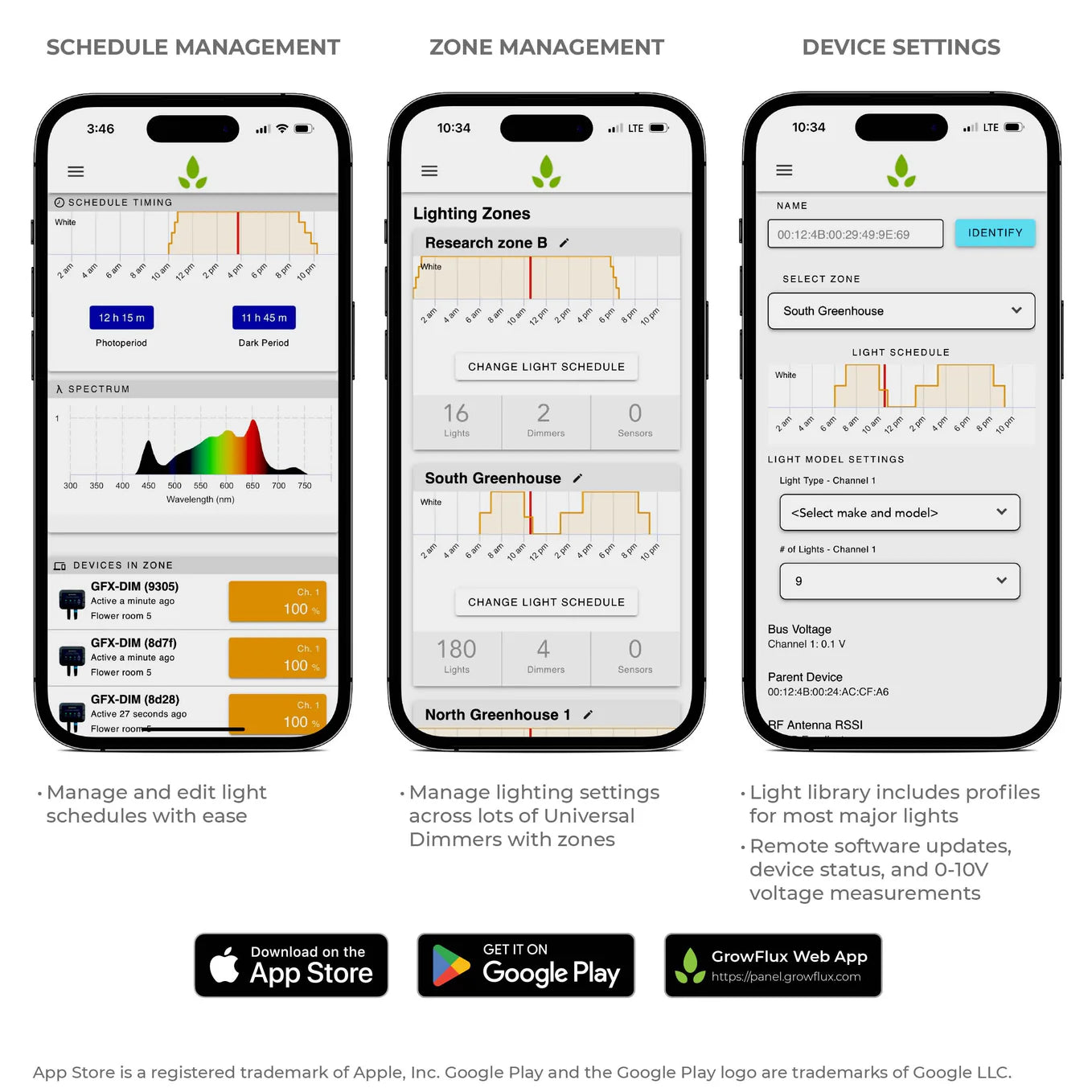

CONTROL FROM ANY DEVICE
Monitor, schedule, and control your lighting network from anywhere with the GrowFlux App for iOS and Android, or the browser based GrowFlux app at https://panel. growflux.com. GrowFlux Access Point required, sold separately.
MESH NETWORK UP TO 200 DEVICES
Up to 200 Universal Dimmers can be connected to each Access Point. Each Universal Dimmer extends GrowFlux Mesh; high reliability wireless mesh network connection is automatically managed.

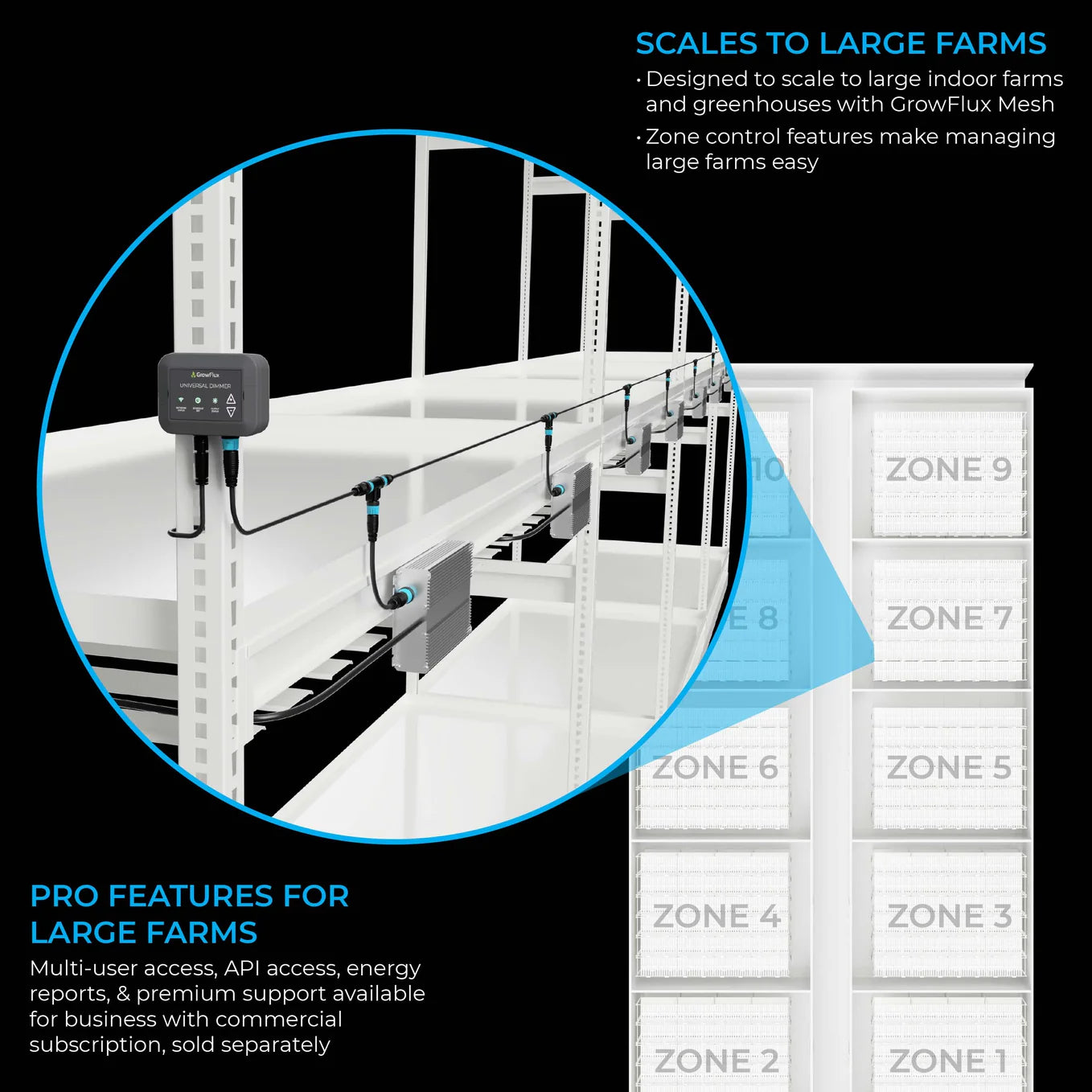

SCALE WITH MORE ACCESS POINTS
Additional Access points can be added to a single facility for more GrowFlux Mesh devices. Accounts can have multiple access points in different time zones for multi-facility management.
EASY SOFTWARE ZONING
Reconfigure your farm with ease with software defined zones. Schedules and settings are sent to all devices in a zone at once, eliminating repetitive programming tasks.
CONTROL ON ANY DEVICE
Manage your lighting systems from anywhere on any device with the GrowFlux App, available for iOS and Android, as well as the GrowFlux web app for browser and desktop control.
RETROFIT FRIENDLY
Designed to easily install into existing facilities to save energy and comply with evolving regulations. The Universal Dimmer family includes turnkey cabling that installs in seconds and supports the most commonly installed lights in the industry.
GrowFlux Pro
Connect up to 500 GrowFlux Mesh devices in wet commercial environments. Housed in a rugged IP65 enclosure and powered by a 48-MHz Arm Cortex-M4F processor, the Pro Access Point keeps your devices reliably connected in the most mission-critical production environments.

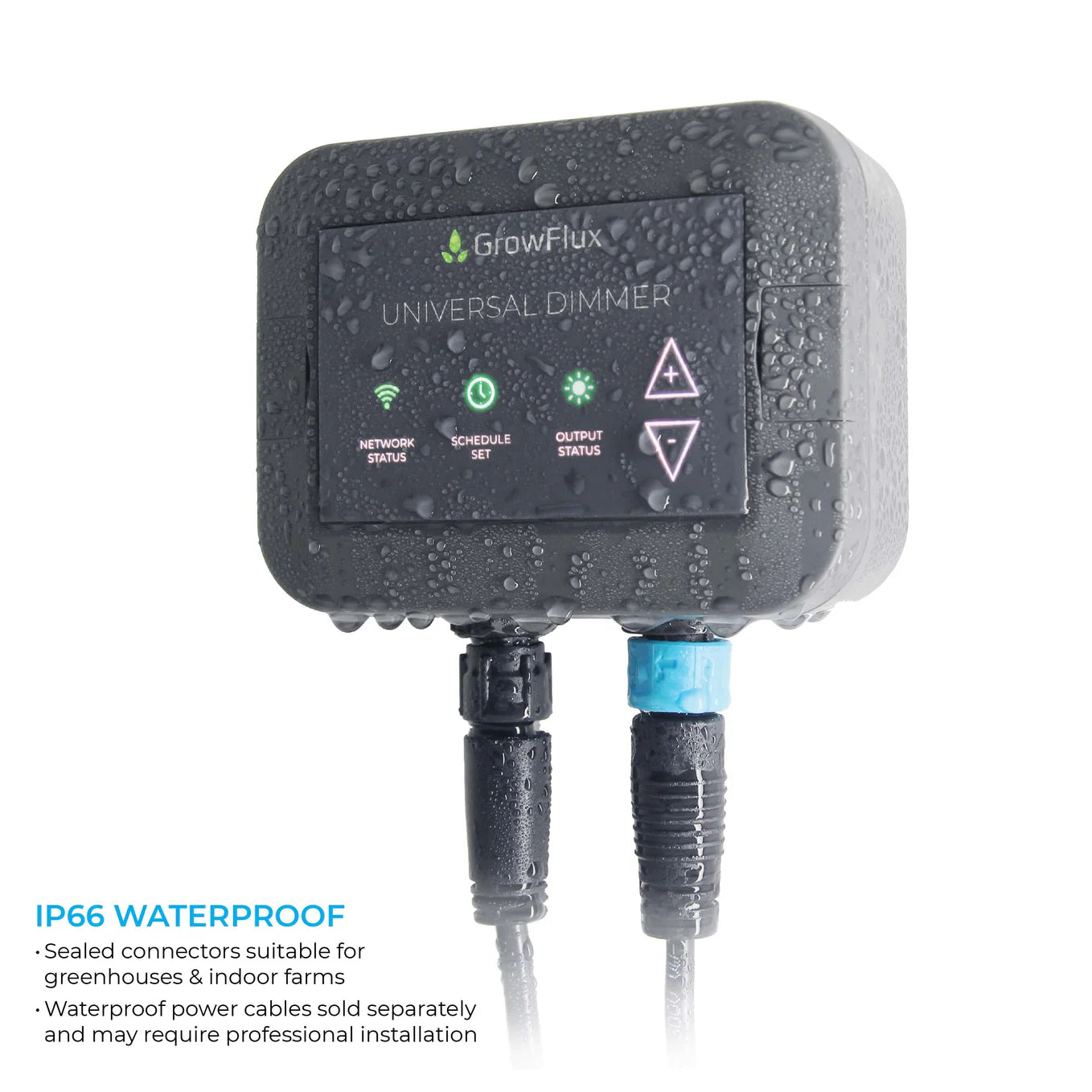

IP66 WATERPROOF
UV resistant IP66 construction with IP67 connectors. Internal water resistant PTFE vent for pressure equalization keeps water out through changes in atmospheric pressure. Waterproof power cables are available separately.

Don't know how many lights you need?
See menus below. If you still have questions, feel free to reach out to us for a lighting layout!
How many lights do I need?
Convert your bench length to inches, then divide by 46". That is how many lights each row can support.
Example:
14' bench length, 3 plants wide
14' x 12" = 168", 168" ÷ 46" = 3 lights (round down)
3 x 2 (available rows in-between plants) = 6 lights
How many power cords and extensions do I need?
Each bench requires at least one power cord. Depending on your total lights, you can daisy chain your rows with an extension. If you exceed max daisy-chain #, you will need two or more power cords per bench.
Max Daisy-Chain #
1.0 Amps - 10 lights - 120v
0.5 Amps - 17 lights - 240v
0.43 Amps - 20 lights -277v
Examples -
Scenario 1
240v, 6 lights per row, 2 rows of lights, 12 lights total = One 240v power cord and one extension cord per bench
Scenario 2
240v, 12 lights per row, 2 rows of lights, 24 total = Two 240v power cords per bench
Scenario 3
240v, 8 lights per row, 3 rows of lights, 24 total = Two 240v power cords and one extension per bench
Click here to go to accessories!
How to order more than 32 lights?
Please submit your lighting layout for larger or commercial orders. Bulk pricing discounts.
